AIR CORE MOTOR STARTING REACTORS

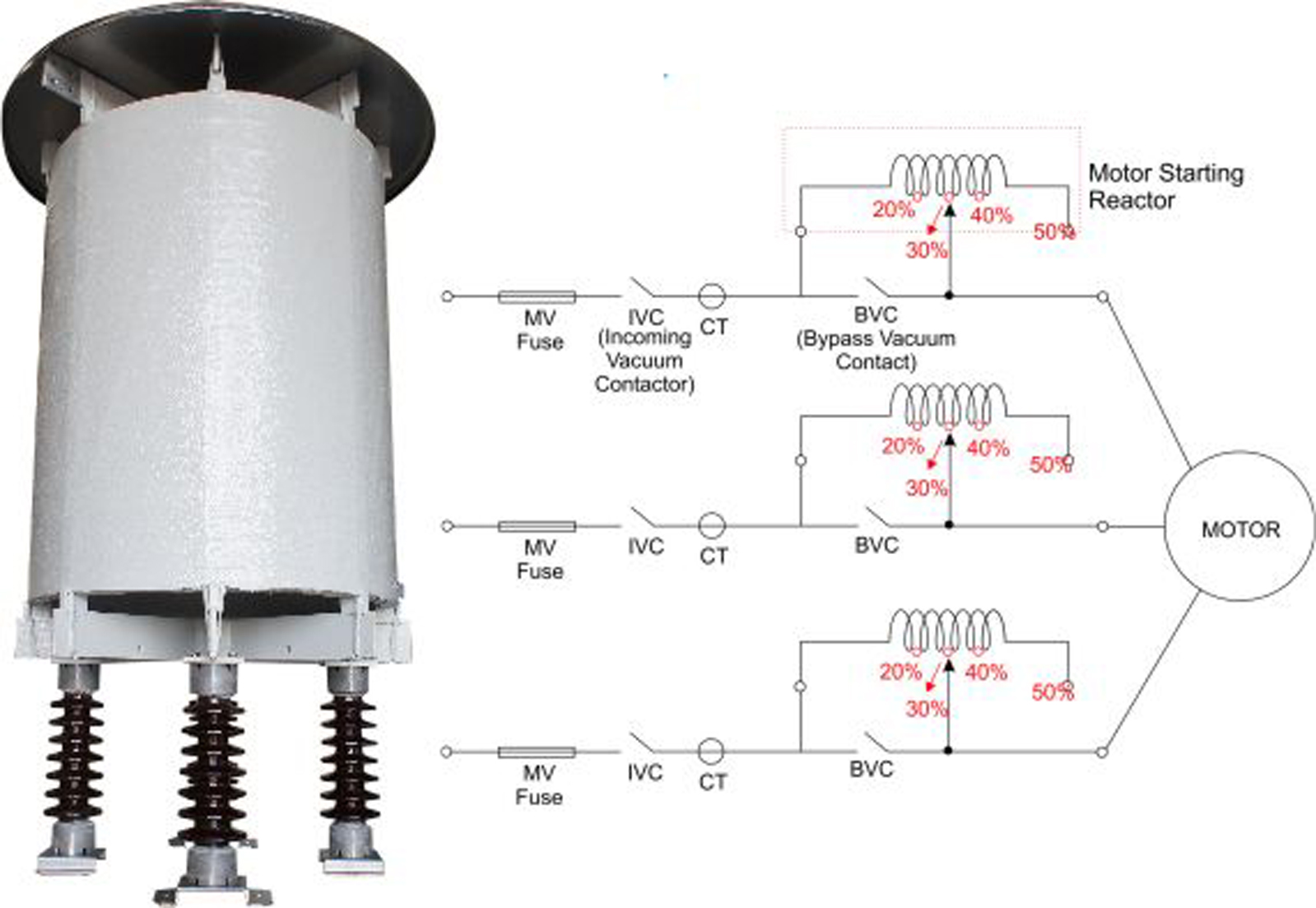

Motor starting reactors are used to reduce voltage during starting of large 3 phase motors while limiting inrush currents.

Large motors generally draw 6-8 times more current than their nominal current. Typically, they are started with 70% voltage while the remaining 30% is dispersed via the motor starting reactor. After 15 - 20 seconds, the reactor is switched off by contactors in the system.

Advantages

l  Perfect mechanical strength to withstand high short-circuit forces

l  Limited temperature rise enables longer lifetime

l  Special surface protection against UV and pollution Class IV areas

l  Maintenance-free design
