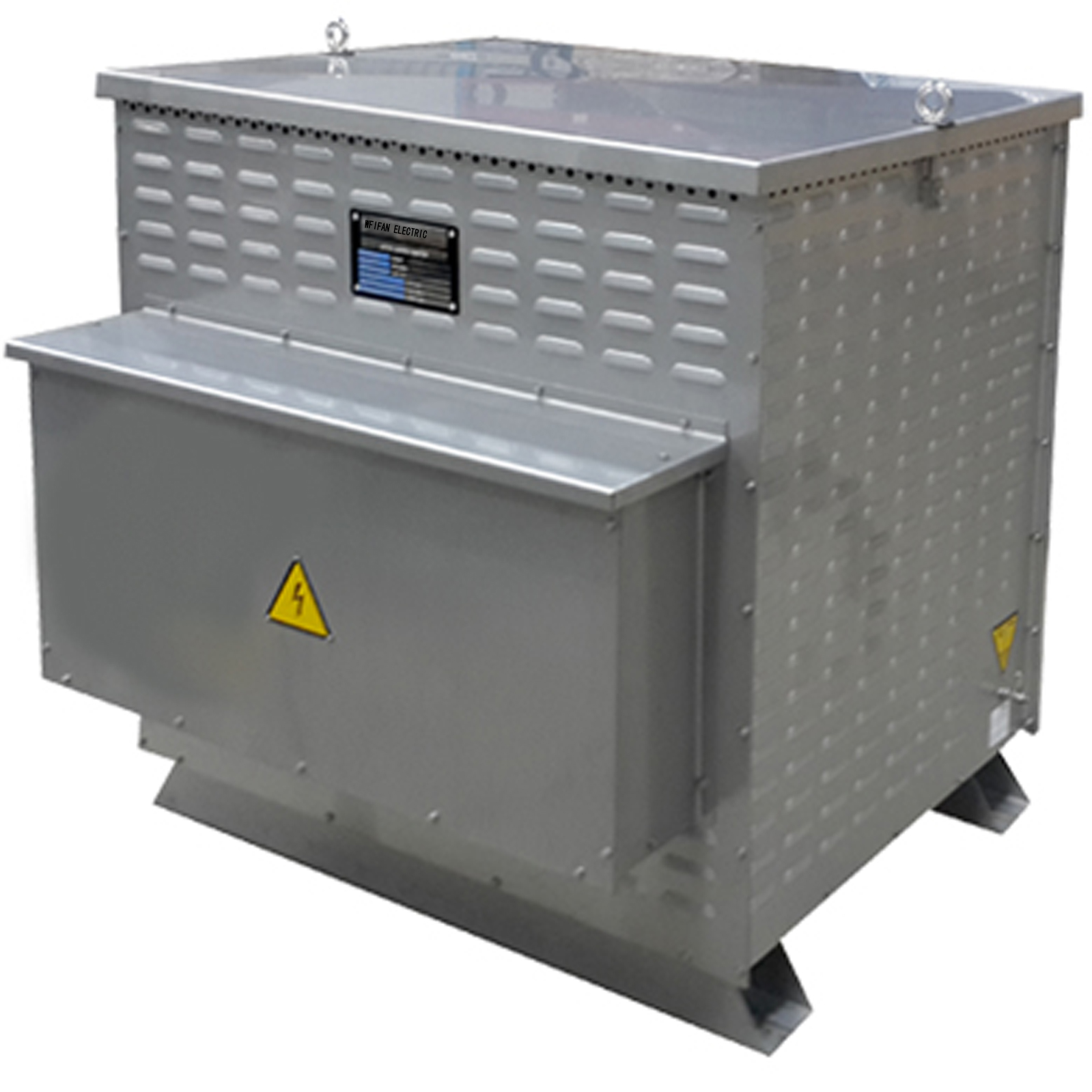

1. Stator Connected Resistors

Motor Starting Resistors are used to reduce the voltage at the motor terminals and also decrease the starting current.

Motor Starting Resistors are necessary because the self resistance of a motor armature is very low. When the voltage is first applied, excessive current will flow. Because there will be no back electromotive force (emf) to limit this current, some series resistance can be added to the armature windings.

As the motor accelerates, the back emf will build and the current through the resistor will thus decrease. Additionally, the voltage drop on the resistor will reduce, causing the voltage across the terminals increases. With this gradually increasing torque and voltage, the acceleration becomes smooth. The resistance is disconnected when the motor reaches a certain speed. At this point, the motor will run with full line voltage.

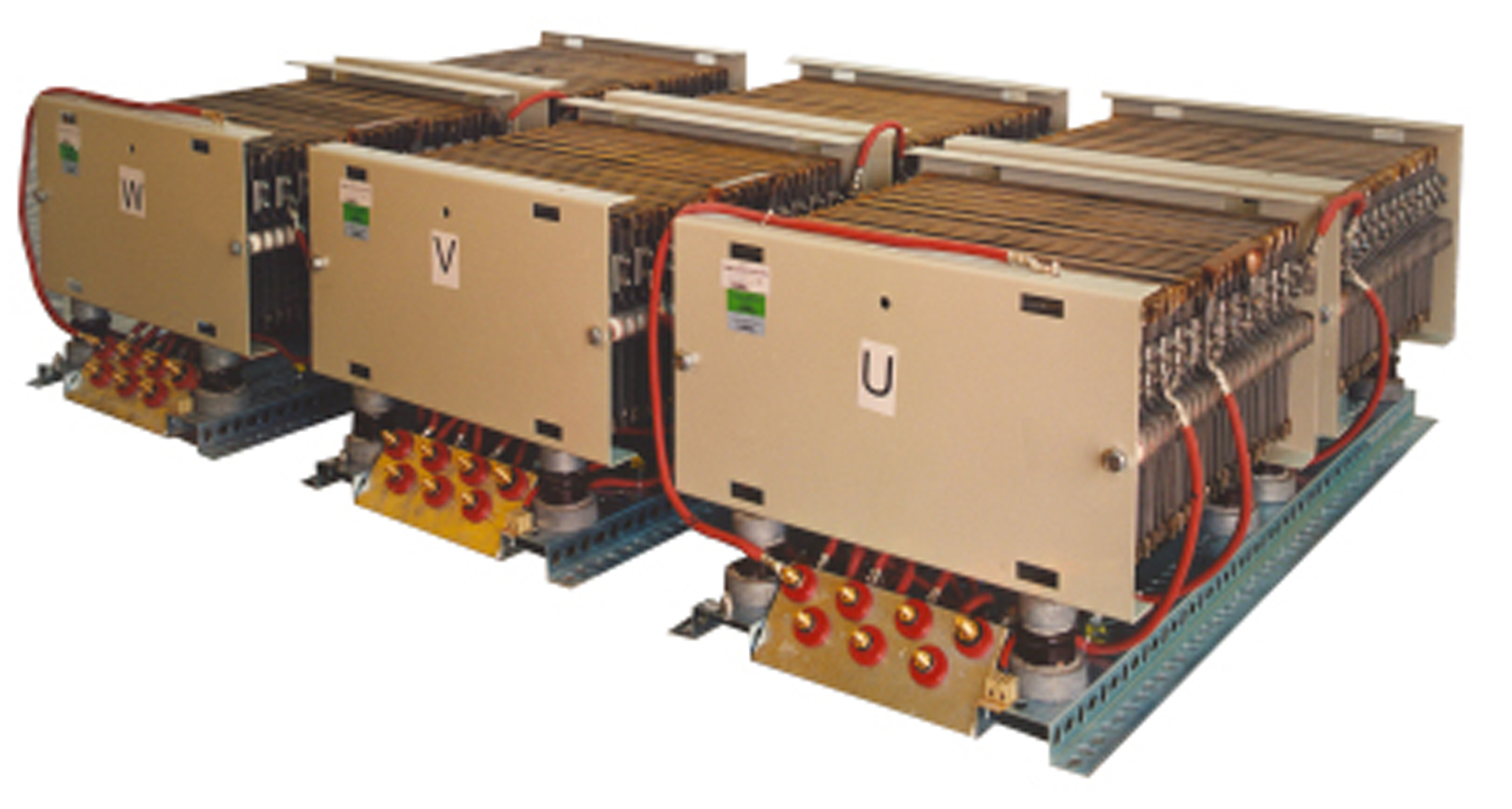

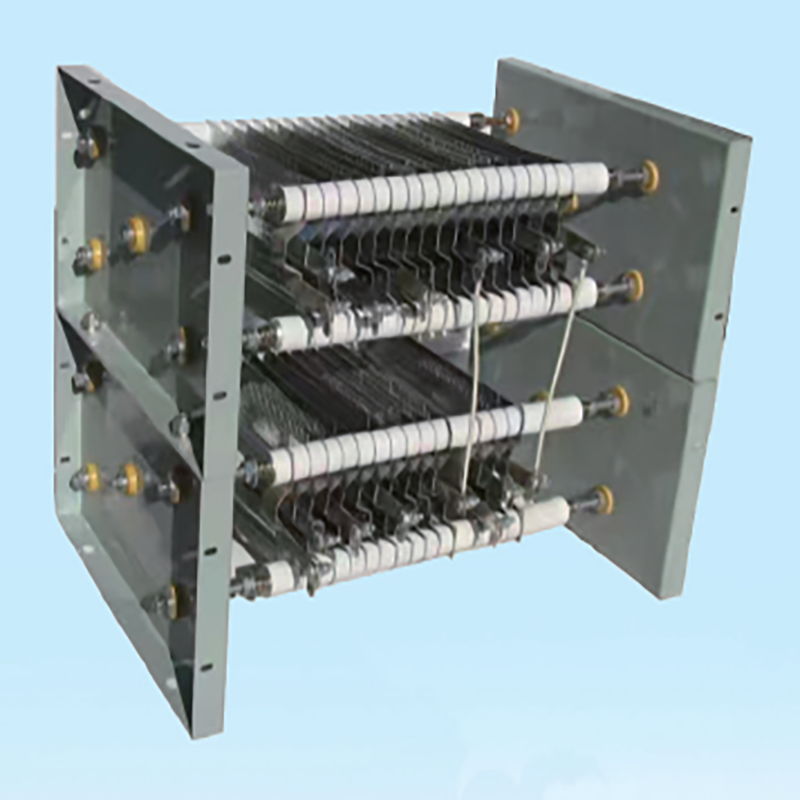

2. Rotor Connected Resistors

Rotor connected resistors are mainly used for motor starting applications which require a high-starting torque, such as loaded belt conveyors in the mining industry. By using external resistors, it is possible to shift the motor maximum (break-down) torque up to a starting torque point for motors under heavy loads during start-up. The resistors are split into steps and controlled via contactors by a motor starting control system. As the motor speed increases, the external rotor resistors are eliminated via shorting contactors until all external resistors are shorted out.

Area of Usage

Overhead cranes

Lift trucks

Machine tools

Conveyors

Cement plants

Industrial controls

Steel mills

Ships and submarines

On load starting motors

Features

Designed and tested to applicable IEC and IEEE Standards

Designed for all squirrel cage and slip-ring induction motors and synchronous motors

Durable construction

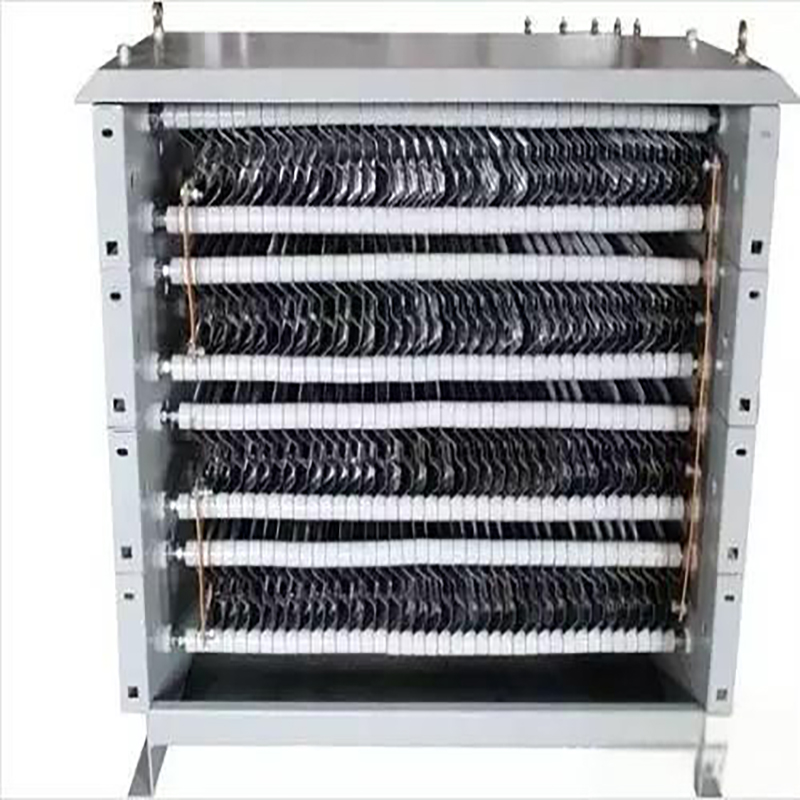

Stainless steel grid or alloy resistance elements

High performance in heavily polluted areas

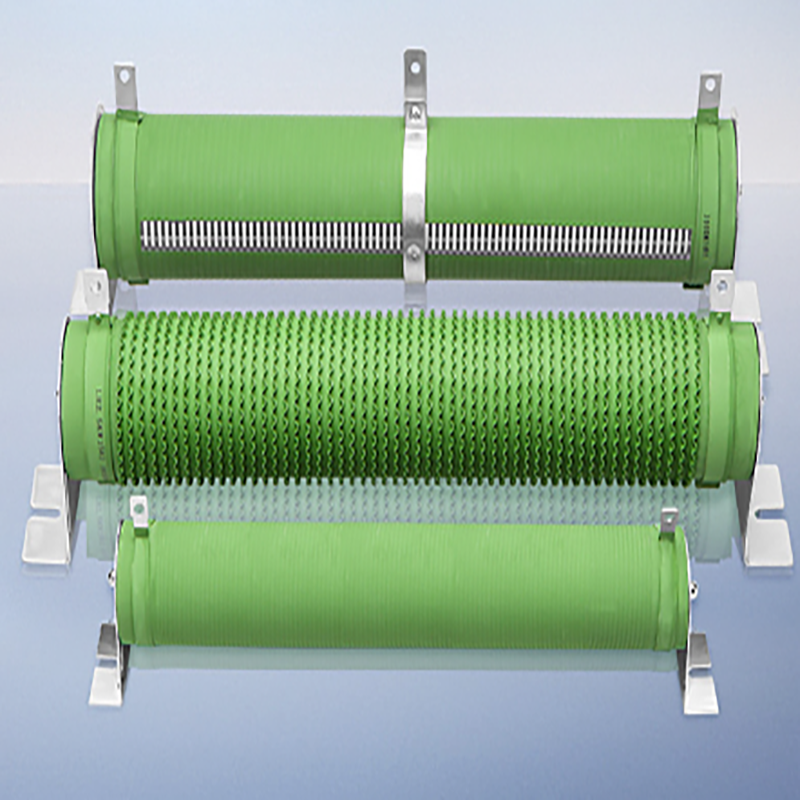

Types

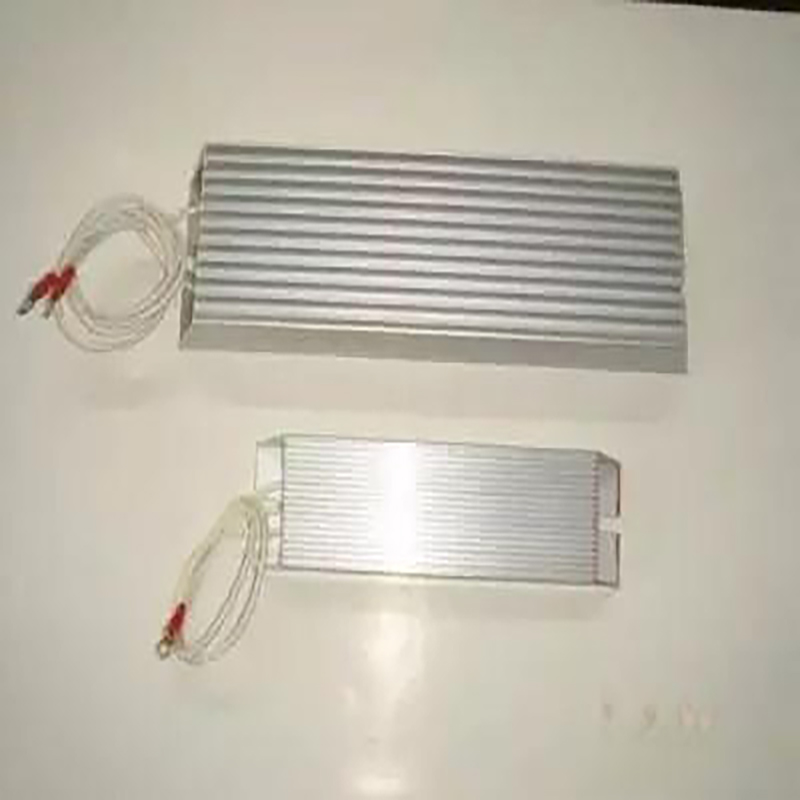

AC Squirrel Cage Induction Motor Resistors

AC Slip-ring Induction Motor Resistors

Crane control resistors

Starting Resistors

Speed Control Resistors

Synchronous Motor Resistors

Selection Details

Application area

Motor rated power

Rotor current

Rotor voltage

Starting Torque

Desired starting time (seconds)

Duty Cycle

Number of starting steps
