Reduce the single phase fault currents and secure eachpiece of equipment in MV electrical networks,

Reduce the transient over voltages which can occur during an earth fault, and be monitored and used to activatethe earth fault relay,

Increase protection of generators, transformers and relatedequipment,

Reducedoperation/maintenance costs,

Increase safety,

Provide simple, reliable, selective means of protection,

Allows the use of equipment, and in particular cables with lower insulation levels than for an insulated neutral scenario

 Reduce the step voltage

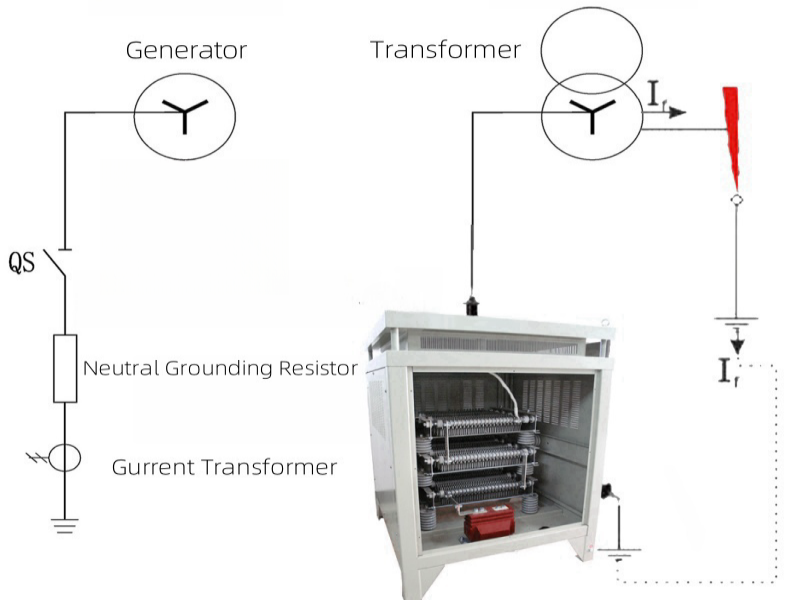

The fault current value should be limited to a value that can be safely handled by the machine or transformer. It also needs to be high enough to be sensed by the earth fault protection relays. If the NGR resistance value is too high, the fault current will be very low and will not be able to activate the earth fault protection relay during earth fault conditions.

In a three phase star connection, the capacitances are formed with the ground. In the event of an earth fault, these capacitances may get charged with the line voltage and may cause transient over voltages. The NGR should have a value that permits a let-through current which enables the capacitances to discharge.

The resistances are also categorized by the time that they can withstand the fault current. Typical durations are 5-10 seconds. The extended time rating resistors are used in systems where the reliability of the system is critical, e.g. petroleum industries, mines, etc. In these situations, high resistances are used for withstanding long periods of earth fault. When an earth fault occurs in one phase, an alarm will be generated. However, the system continues to run until the next scheduled shutdown.

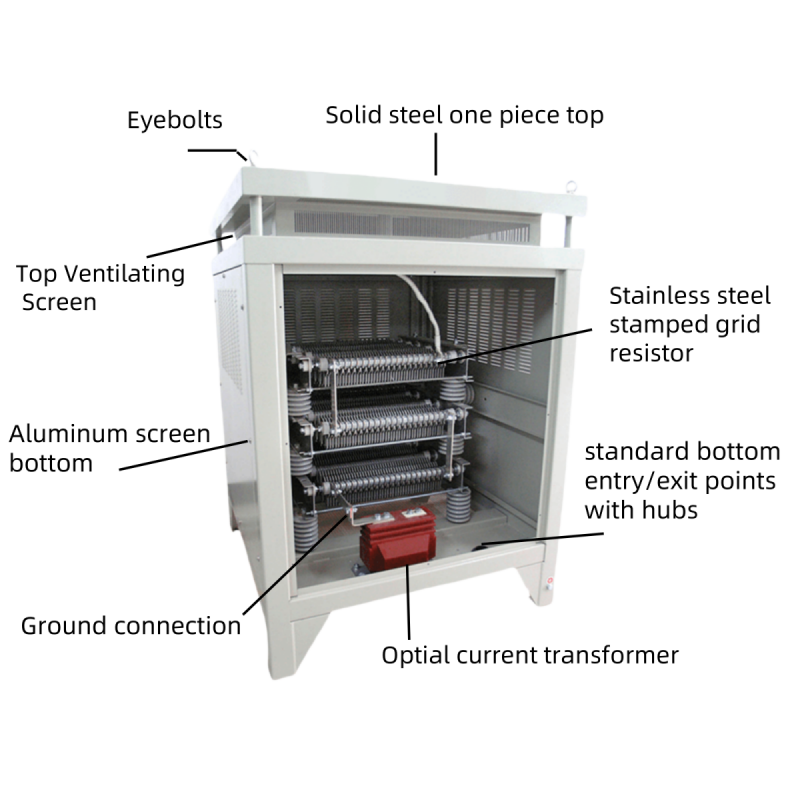

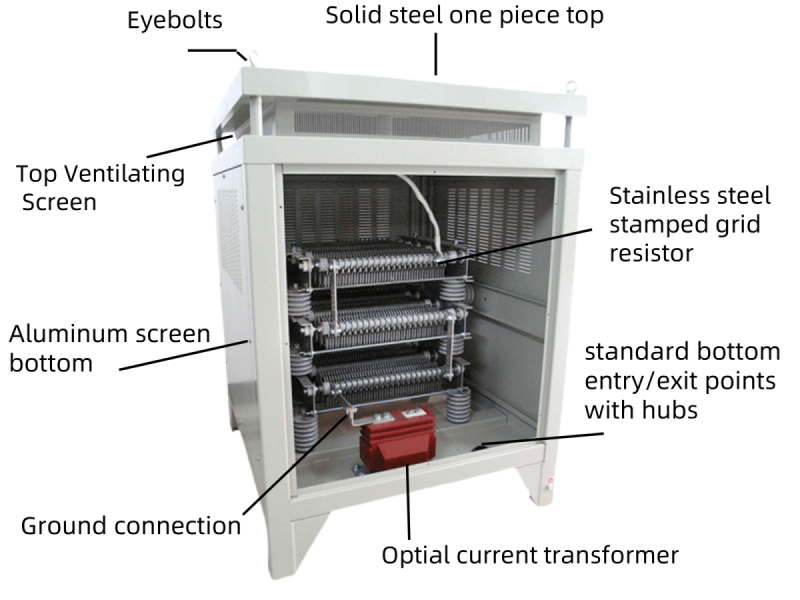

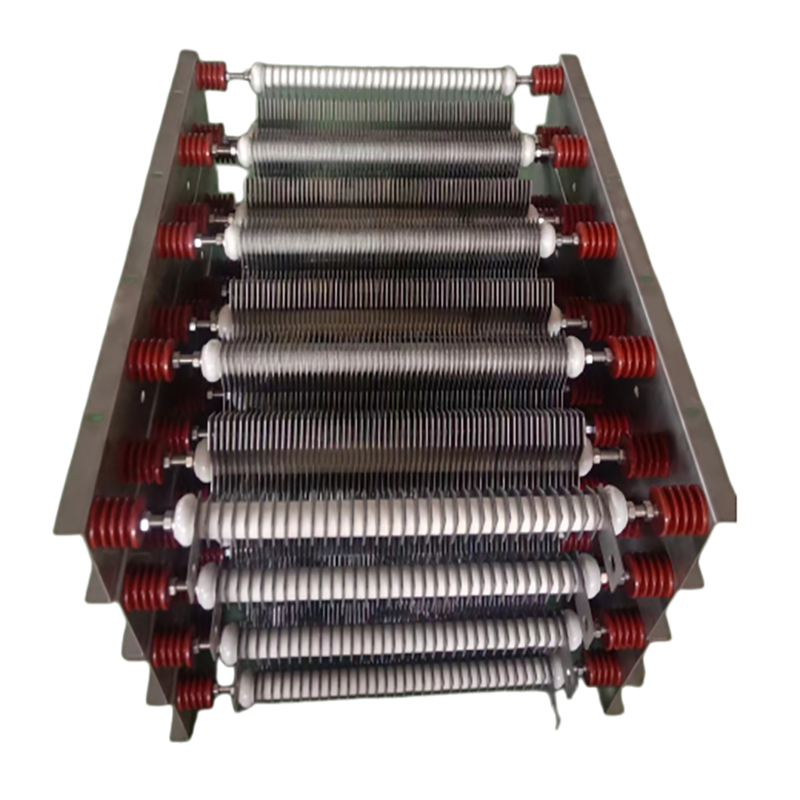

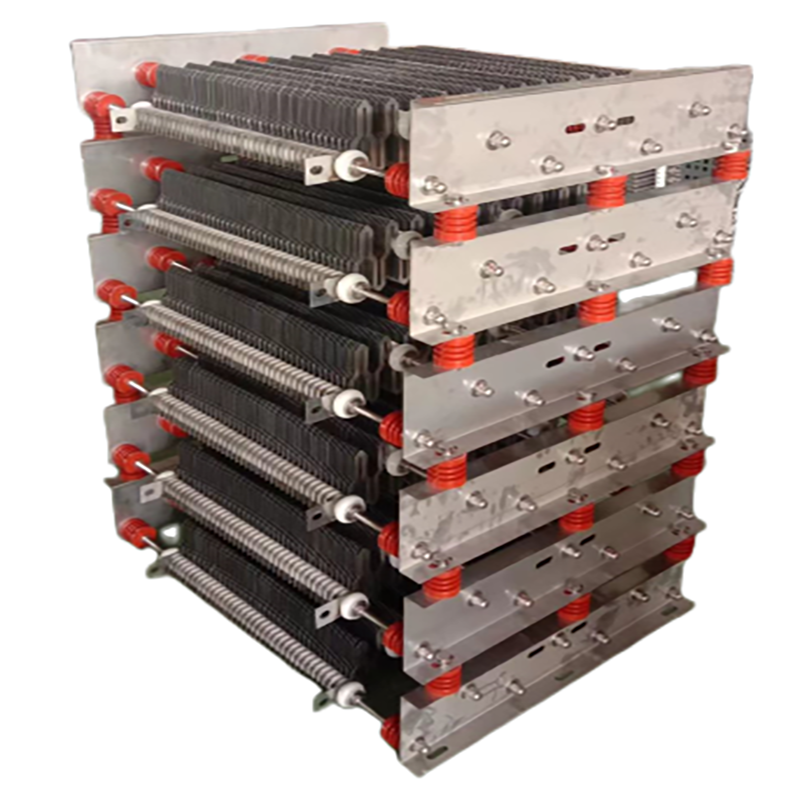

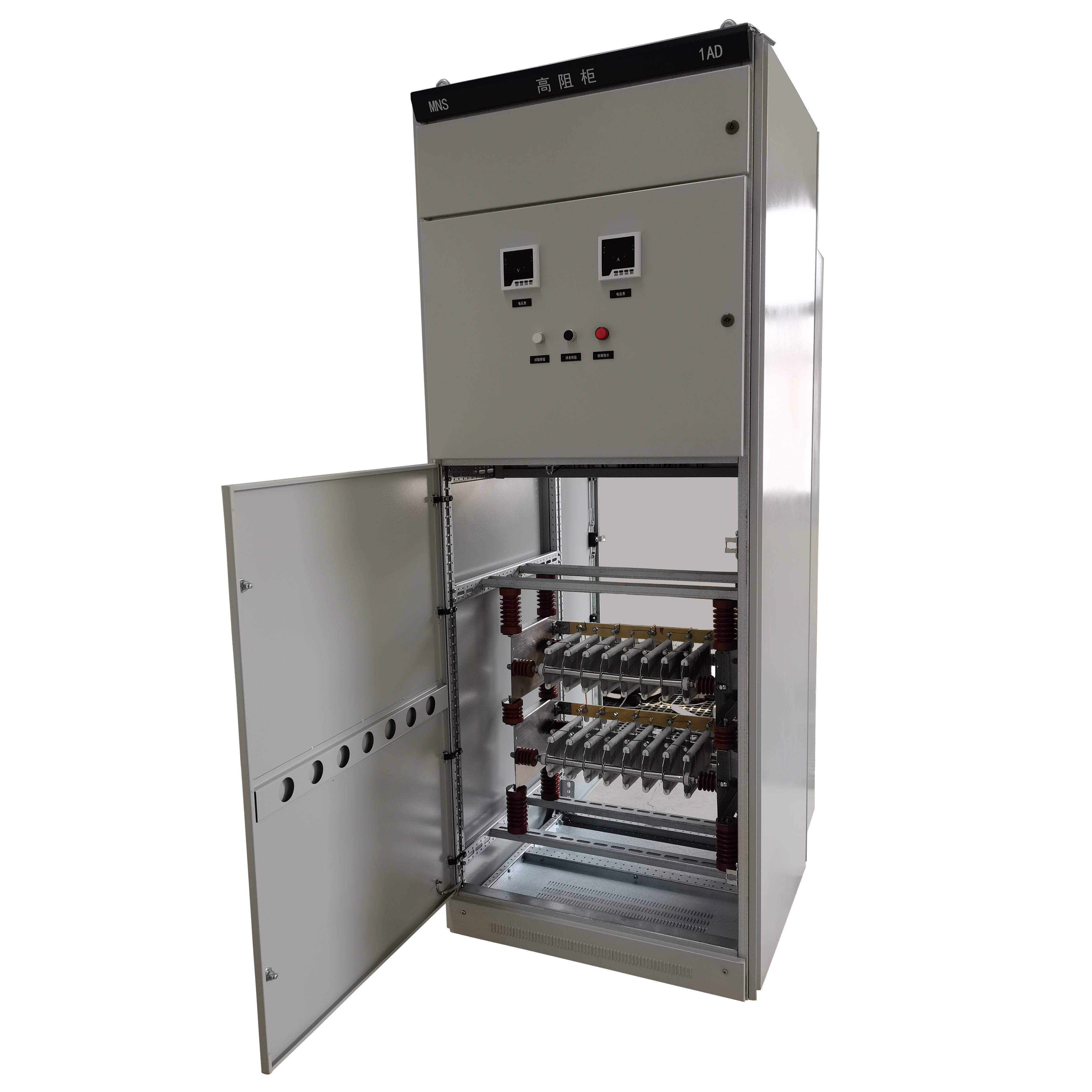

Neutral Earthing Resistors are designed to absorb a large amount of energy without exceeding temperature limitations defined in IEEE 32. weifan NGRs can be used in both indoor and outdoor settings. The neutral point is connected with a porcelain bushing or a high voltage (XLPE) cable, typically (minimum cross-section = 70mm2 copper or 95mm2 aluminium) from the bottom, top or side. The most common protection degree preferred for NGRs is IP 23 as it allows the resistor elements to cool more easily. Because the resistor elements are comprised completely of stainless steel, they are capable of withstanding extreme environmental conditions and thus suitable for both the seashore and desert. NGRs are shipped with maintenance and installation guidelines which include recommended relay settings. weifan provides complete technical assistance in order to meet your specifications or site conditions.

NGR Options

Elevated support stands are provided for ground clearance and safety

Specially designed units for hazardousand extreme locations (Ex-proof, ATEX certified)

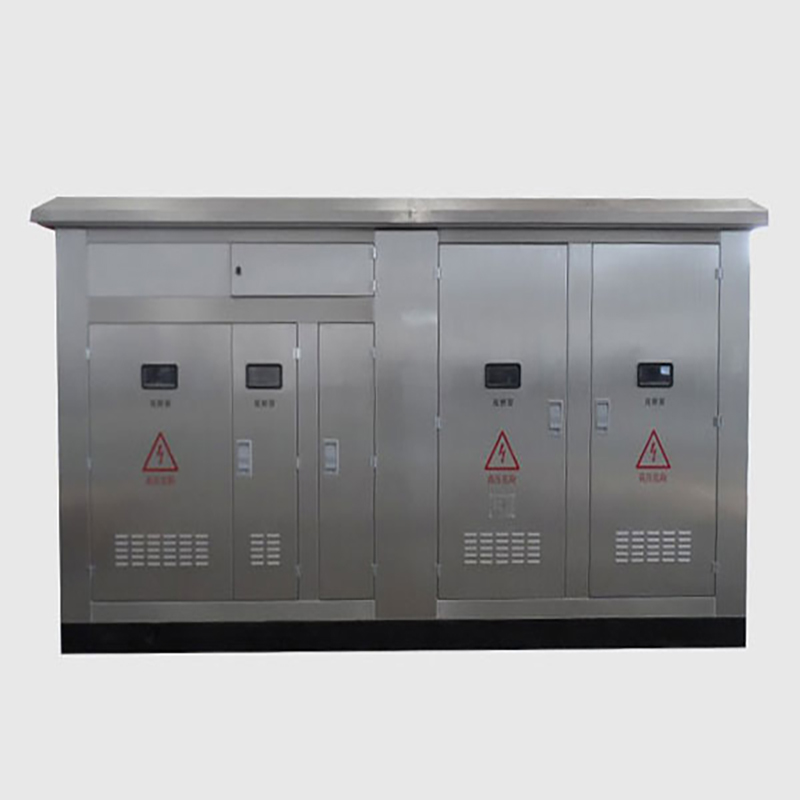

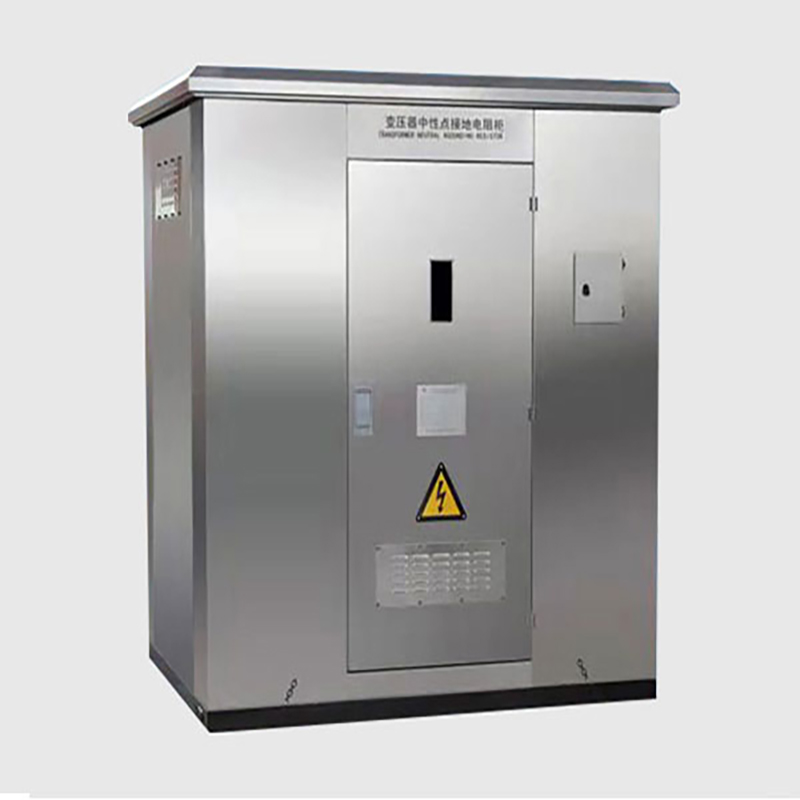

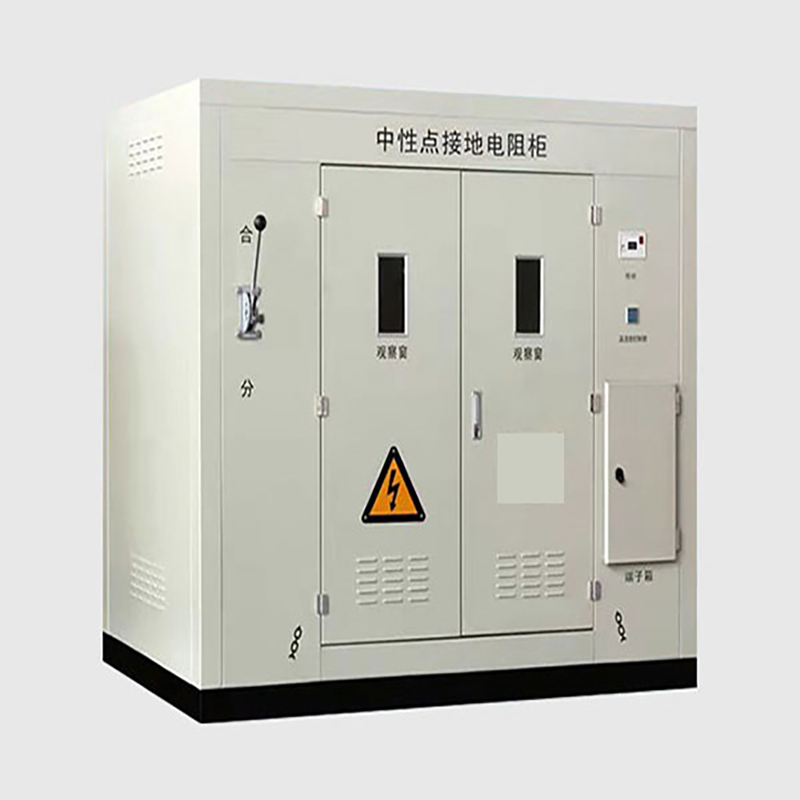

Stainless steel or aluminium enclosures on demand

Installation of voltage transformers

Installation of protection relays

Porcelain entrance bushings can be mounted on the top or on the side of enclosure

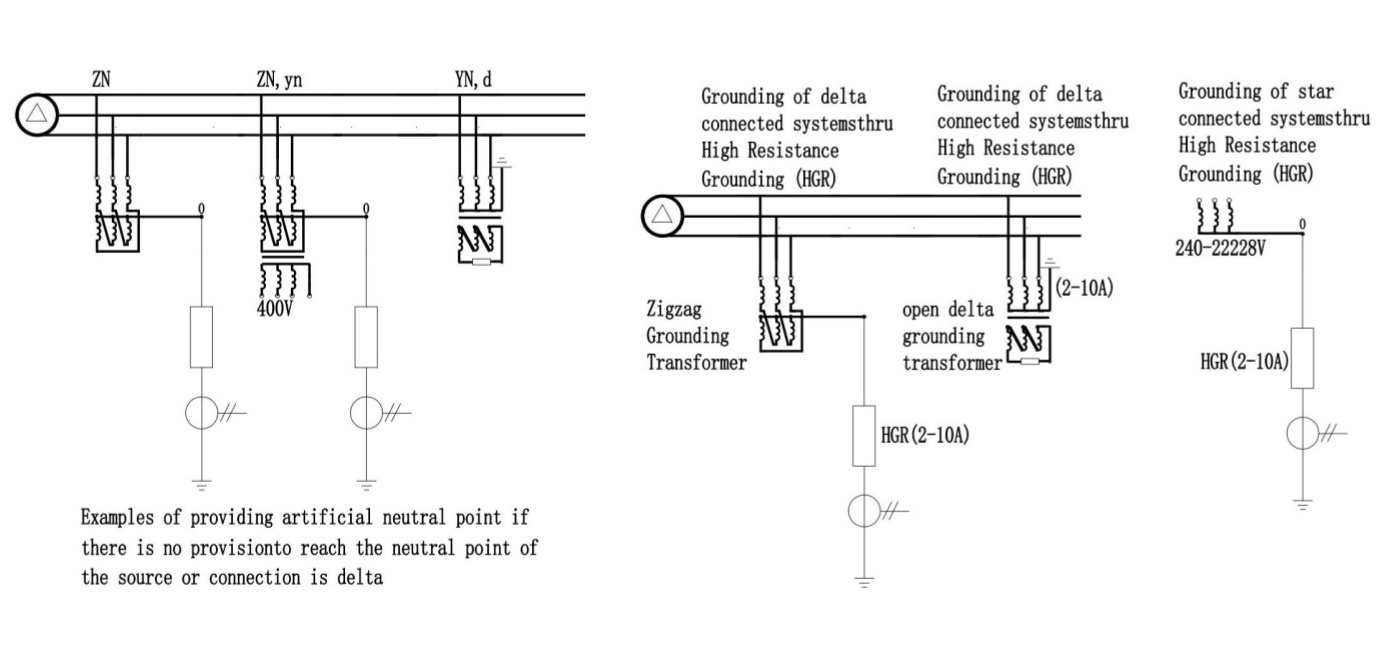

Grounding transformer installation
