36kV Oil Type Power Transformer

Short Description:

WEIFAN GROUP 36kV Oil Type Power Transformer with capacity from 50kVA - 3.15MVA. It is manufactured with high efficiency, low loss and maintenance free. It complies with IEC60076 and has been solding in Africa, South Asia, Middle East and so on....

Send email to us Download as PDF

Describe

Technical Tables

Drawing

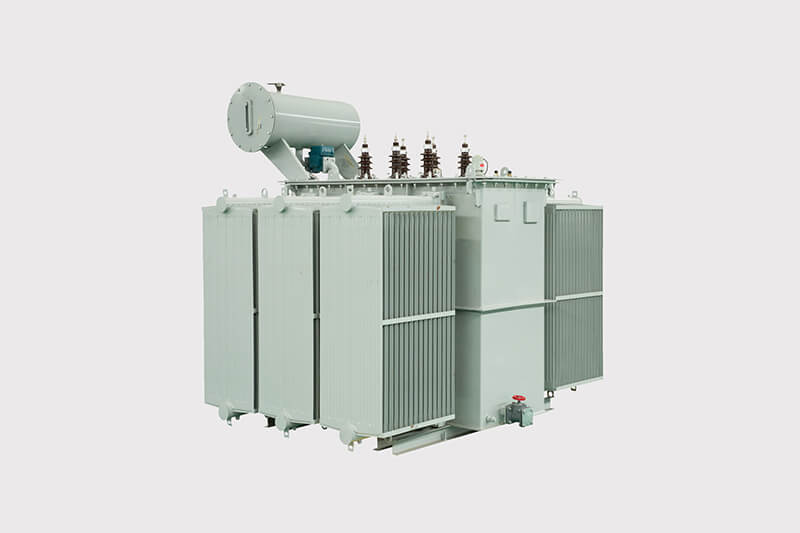

WEIFAN GROUP 36kV oil type power transformer with capacity from 50kVA - 3.15MVA. The oil immersed power transformer has high efficiency, low loss and maintenance free. The iron core is made of cold rolled grain oriented silicon steel sheet. High quality enameled or paper covered copper is used as conductor, the winding was made as drum type, spiral type, improved spiral type, continuous type and interleaved type to ensure the insulation strength. The tank, cover and the conservator are made by corrugated steel plate with high quality grade mineral oil in it.

Features:

Rated Voltage: 35kV/36kV/38.5kV

Power Capacity: 50kVA - 3.15MVA

Frequency: 50/60Hz

Standard: IEC60076-1, IEC60076-2, IEC60076-5, IEC60317, ANSI, IEEE, AS, etc.

Altitude: ＜2000m

Environment: Outdoor

Capacity KVA	Voltage and tap range			Connection	No-load loss (kW)	Load loss (KW)	NO-load current (%)	Impedance (%)
Capacity KVA	HV (kV)	MV (kV)	LV (kV)	Connection	No-load loss (kW)	Load loss (KW)	NO-load current (%)	Impedance (%)
50	35	± 5	0.4	Dyn11 Yyn0	0.21	1.27/1.21	2.00	6.5
100					0.29	2.12/2.02	1.80
125					0.34	2.50/2.38	1.70
160					0.36	2.97/2.83	1.60
200					0.43	3.50/3.33	1.50
250					0.51	4.16/3.96	1.40
315					0.61	5.01/4.77	1.40
400					0.73	6.05/5.76	1.30
500					0.86	7.28/6.93	1.20
630					1.04	8.28	1.10
800					1.23	9.90	1.00
1000					1.44	12.15	1.00
1250					1.76	14.67	0.90
1600					2.12	17.55	0.80
630			3.15 6.3 10.5	Yd11	1.04	8.28	1.10
800					1.23	9.90	1.00
1000					1.44	12.15	1.00
1250					1.76	14.67	0.90
1600					2.12	17.55	0.80
2000					2.72	19.35	0.70
2500					3.20	20.70	0.60
3150	35~ 38.5	± 5	3.15 6.3 10.5		3.80	24.30	0.56	7.0
4000					4.52	28.80	0.56
5000					5.40	33.03	0.48
6300					6.56	36.90	0.48	7.5
8000		± 2 x 2.5	3.15 3.3 6.3 6.6 10.5 11	YNd11	9.00	40.50	0.42
10000					10.88	47.70	0.42
12500					12.60	56.70	0.40	8.0
16000					15.20	69.30	0.40
20000					18.00	83.70	0.40
25000					21.28	99.00	0.32
31500					25.28	118.8	0.32
