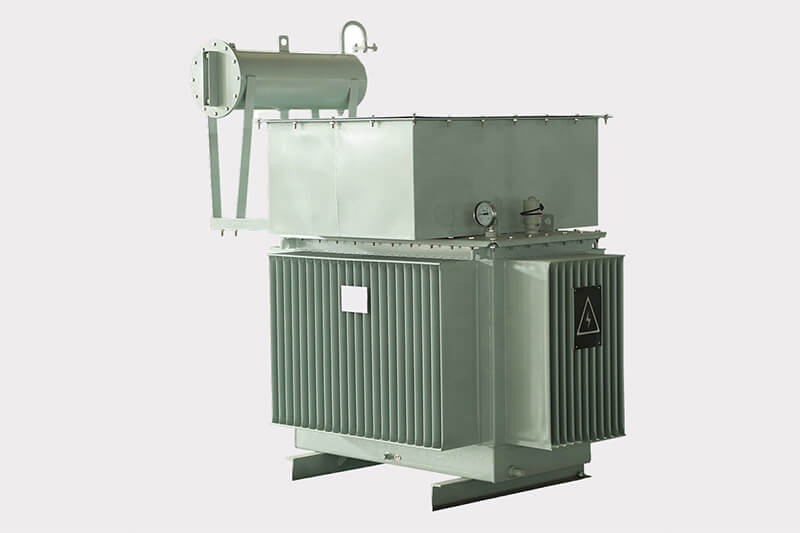

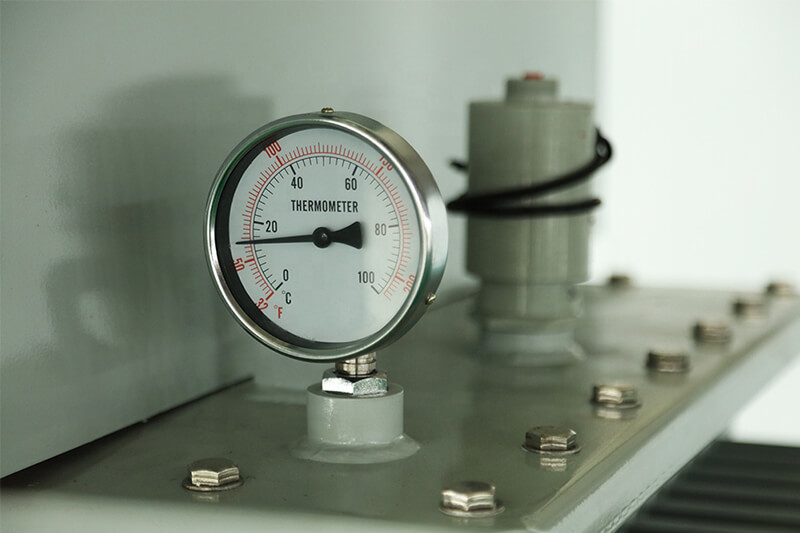

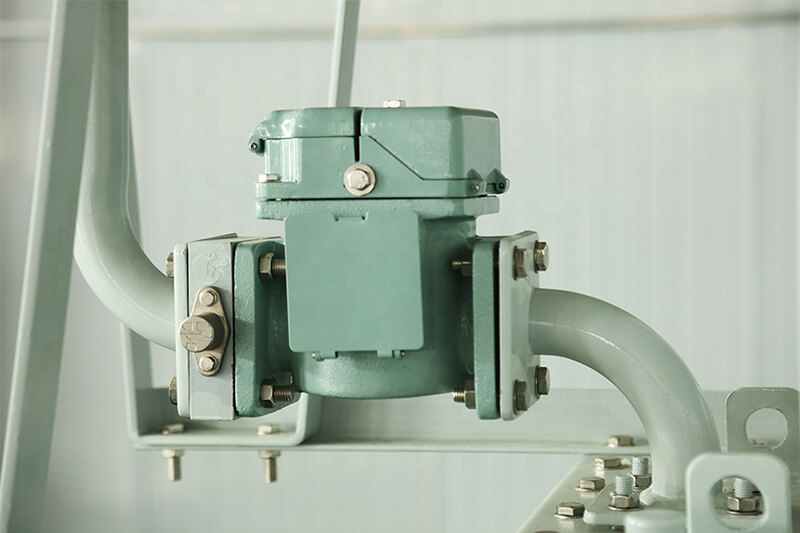

500kVA Oil Type Distribution Transformer

Short Description:

The 500kVA oil type three phase distribution transformer is manufactured by WEIFAN GROUP ELectric Group in China. It complies with IEC standard for having high quality and long service life. We support customization for different voltage classes and capacities....

Send email to us Download as PDF

Describe

Technical Tables

Drawing

Technical Data 6kV to 11kV Oil Type Distribution Transformer:

Rated Capacity(KVA)	Rated Voltage(KV)	Vector Group	Impedance(%)	No-load loss/ Load loss(KW)	No-load Current(%)
10	(HV) 11 10.5 10 6.3 6 (LV) 0.4 0.69	Yyn0, Dyn11	4	0.065/0.4	3.5
20				0.08/0.52	3.0
30				0.1/0.63(0.6)	2.3
50				0.13/0.91(0.87)	2.0
63				0.15/1.09(1.04)	1.9
80				0.18/1.31(1.25)	1.9
100				0.2/1.58(1.5)	1.8
125				0.24/1.89(1.8)	1.7
160				0.28/2.31(2.2)	1.6
200				0.34/2.73(2.6)	1.5
250				0.4/3.2(3.05)	1.4
315				0.48/3.83(3.65)	1.4
400				0.57/4.52(4.3)	1.3
500				0.68/5.41(5.15)	1.2
630			4.5	0.81/6.2	1.1
800				0.96/7.5	1.0
1000				1.15/10.3	1.0
1250				1.36/12.0	0.9
1600				1.64/14.5	0.8
2000				1.96/19.8	0.8
2500				2.31/23.0	0.7
