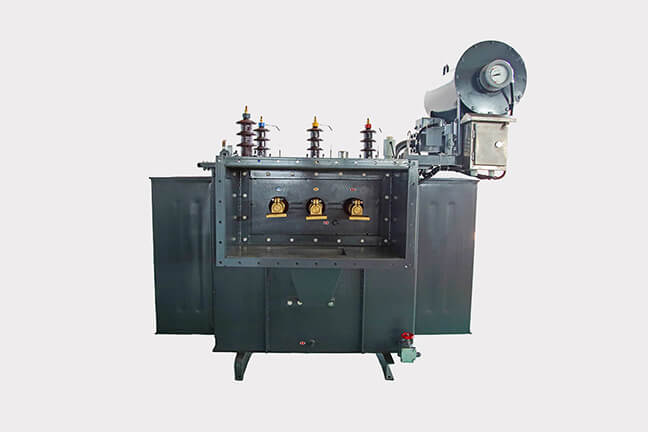

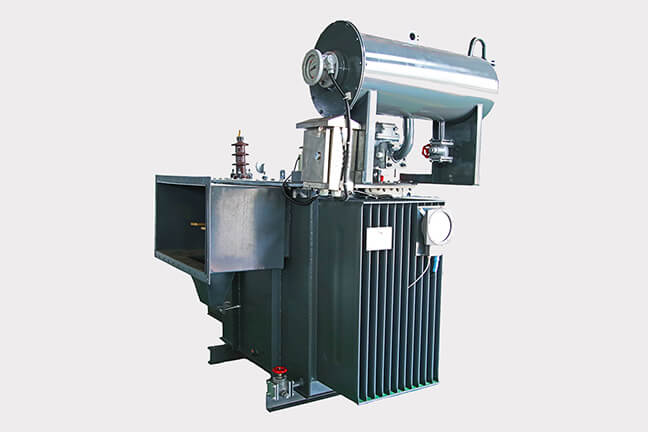

630kVA Oil Type Distribution Transformer

Short Description:

630kVA three phase oil type distribution transformer which is manufactured by WEIFAN GROUP Electric. It complies IEC standard for using on power plant, substation and so on. The rated voltage includes 6kV, 6.3kV, 10kV, 10.5kV, 11kV, etc. We support customization for your specical requirements. Please contact us for more details....

Send email to us Download as PDF

Describe

Technical Tables

Drawing

Technical Reference of 630kVA Oil Type Distribution Transformer:

Rated capacity (kVA)	Voltage group(kV)	Vector group	Impedance voltage(%)	(KW) Loss		No-load current(%)
Rated capacity (kVA)	Voltage group(kV)	Vector group	Impedance voltage(%)	No-load	Load	No-load current(%)
10	(HV) 11 10.5 10 6.3 6 (LV) 0.4 0.69	Yyno Dyn11	4	0.065	0.4	3.5
20				0.08	0.52	3.0
30				0.1	0.63/0.6	2.3
50				0.13	0.91/0.87	2.0
63				0.15	1.09/1.04	1.9
80				0.18	1.31/1.25	1.9
100				0.2	1.58/1.5	1.8
125				0.24	1.89/1.8	1.7
160				0.28	2.31/2.2	1.6
200				0.34	2.73/2.6	1.5
250				0.4	3.2/3.05	1.4
315				0.48	3.83/3.65	1.4
400				0.57	4.52/4.3	1.3
500				0.68	5.41/5.15	1.2
630			4.5	0.81	6.2	1.1
800				0.96	7.5	1.0
1000				1.15	10.3	1.0
1250				1.36	12.0	0.9
1600				1.64	14.5	0.8
2000				1.96	19.8	0.8
2500				2.31	23.0	0.7
