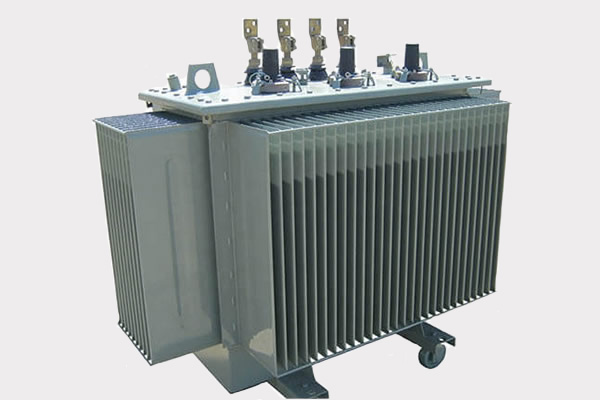

H59 series distribution transformers are installed in MV / LV substations. These H59 oil immersed transformers have a place in different fields: urban and rural power distribution, tertiary industry, utilities, industry, renewable energy, etc.

Features of H59 Distribution Transformer

Basic equipment:

•3 HTA insertion sleeves

24KV / 250A fixed part type on -24KV series

36KV / 400A type fixed parts on -36KV series

•4 LV porcelain sleeves

•3 position power switch

•Fill holes

•2 lifting rings

•2 ground positions

•Nameplate, warranty

•1 dial thermometer

•1 oil level indicator

•4 orientable rollers.

Optional equipment:

•3 plug-in bushings, straight or angled moving parts, corresponding to fixed parts. in

In this case, the characteristics (nature, cross-section, insulation diameter) of the cable must be specified

•3 porcelain MV crossing

•4 LV bushing type Bar Pass

•1 locking system for plug-in bushings and switches, no locking provided

•1 sealable protective cover on LV bushing (only in case of plug-in MV cross)

•Protection and control equipment: thermostat, multi-function protective relay (DGPT2 or DMCR).

The color of the tank:

•Cement gray RAL 7033.

General characteristics:

Standards and specifications:

•IEC 60076

Power range:

•50-100-160-250-315-400-500-630 KVA

•Additional power between 25 and 630 KVA on request.

Explanation:

•Fully-filled sealed three-phase distribution transformer immersed in ONAN natural cooling mineral oil

•Special corrosion protection of storage tanks.

Types:

•Indoor or outdoor

•Oil / gas immersion

•Breathable type, preservatives can be added as required.

Frequency:

•50 Hz

•60 Hz: Contact us.

Operating Voltage:

MV: from 5.5 KV to 33KV

•Single voltage: 5.5-6-6.6-10-15-20-22-30 and 33 KV (insulation: 24-36 KV)

•Dual voltage: (switchable) 5.5 / 20 KV and 5.5 / 22KV ...

•Other demand tensions.

LV: 400 V between phases No-load-231 V between phase and neutral.

•Other demand tensions.

Shutdown settings:

•Standard range: ± 5% on MV, through adjustable switch without voltage

•Other setting ranges are available on request.
